1000MM Length Screw Spiral Blade Stainless Steel For Conveying Materials

1000MM Length Screw Spiral Blade Stainless Steel For Conveying Materials

Auger Blades For Screw Conveyor

1. Screw Flight is mainly used for conveying materials with high viscosity and compressibility. This type of Screw Flight has the functions of stirring and mixing materials when the conveying operation,it is widely used in material transportation, such as block, particle, powder and other materials, or some high-temperature, corrosive materials, instead of manual handling, with higher efficiency.

2. Applicable to the biomass power generation, waste power generation, chemical industry, metallurgy, environmental protection machinery, mining machinery, food machinery, engineering machinery, food machinery, paper and other industries

3. The common helical blades are continuous helical blades, single helical blades and equithick helical blades. The appropriate helical blades can be selected according to different requirements. Spiral blades are installed in a closed pipe or a semi-closed u-shaped groove, and one end is equipped with power to form a spiral conveyor.

4. Screw Flight choose different materials according to different USES, common materials are ordinary carbon steel, stainless steel, manganese steel and so on. If it is ordinary material, such as wood chips, plastic particles, powder, can choose ordinary continuous spiral blade, material is carbon steel; If the transport of minerals, particle hardness of the material, should choose higher wear resistance manganese steel, increase its service life; In some food processing equipment, considering the health of food, should choose stainless steel spiral blade.

Continuous Cold Rolled Auger Blades

Auger Blades​ Specification:

We can offer the Screw Blade Helical Blade and Helical Blade Machine.

1. Model Number/Series:

We can supply most kinds of screw-flight & auger shaft. We can manufacture them according to your drawings or samples. We can supply the screw-flight within the following dimension range:

Any length, any pitch and both rotating directions

2. Dimension/Size:

Inner diameter: ≥8mm
Outer diameter: ≤800mm
Thickness: 3 to 20mm

3. Working Condition/ Function: Any use for transmission and dig

4. Shield Colour: Red, Green, Black, Self-colour or as requested5. Material: Steel and Plastic

6. Continued cold rolling when it has 3-5mm thickness, inner Dia. ≥20MM, outer Dia. ≤800MM

7. Continued twisting when it has 3-20 thickness, inner Dia. ≥8MM, outer Dia. ≤2MM.

8. Implement side yoke: 6 splined push pin shear bolt type yoke

9. Feature/ characteristic: Stamping and extending which adapted for any product but need making specified mold

These materials, which can be low-carbon, manganese and stainless steel, can meet the requirements of customers from different way.

1000MM Length Screw Spiral Blade

1000MM Length Screw Blade

Stainless Steel Screw Spiral Blade

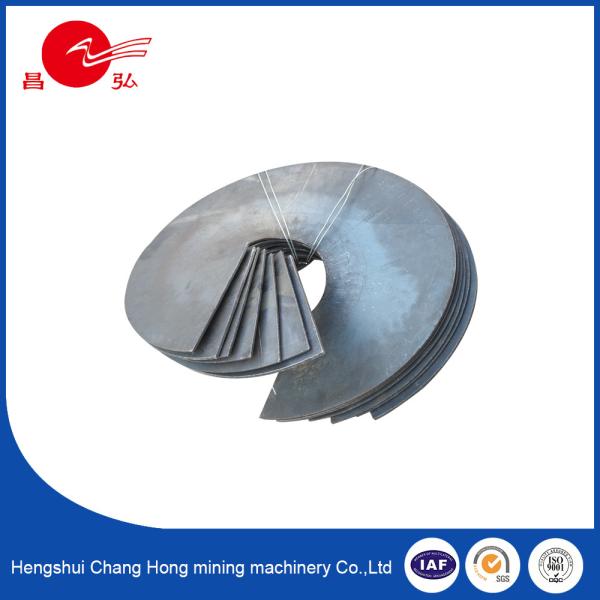

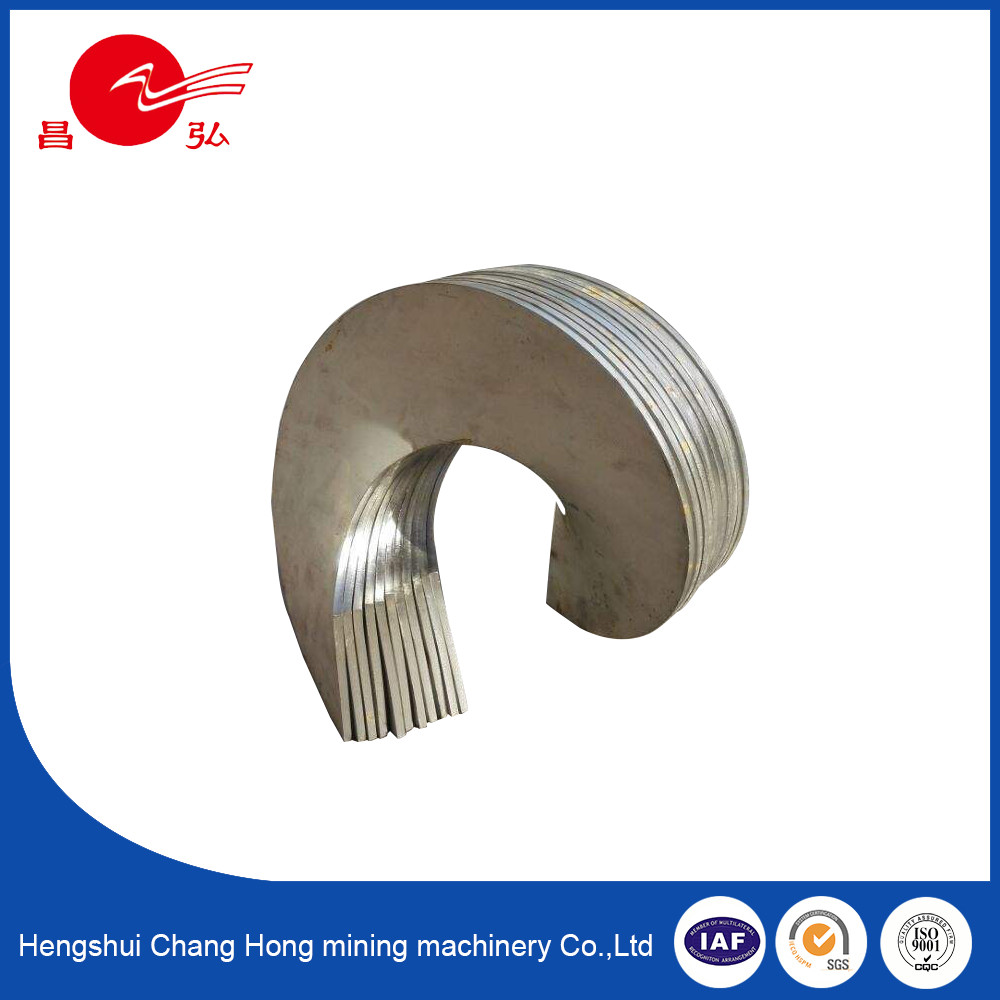

1000MM Length Screw Spiral Blade Stainless Steel For Conveying Materials Images
