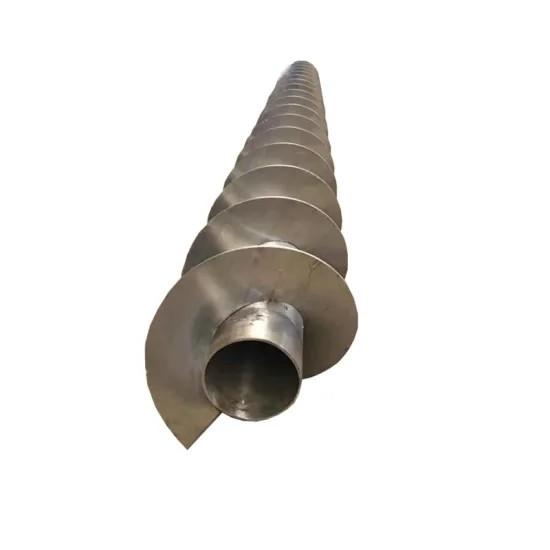

Steel Auger Flight Spiral Blade

Name: Steel Auger Flight Spiral Blade
Brand: Changhong
Price: 5 USD

Quality Steel Auger Flight Spiral Blade wholesale

Brand Name : Changhong

Certification : ISO,SGS,SONCAP

Place of Origin : Hebei,China

MOQ : 10 pieces

Price : USD5-500/piece

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100pieces/day

Delivery Time : 10-15 work days

Structure : Screw

Material : Carbon Steel

Material Feature : Material Feature

Application : Chemical Industry, Grain Transport, Mining Transport, Power Plant, Screw Conveyor

Condition : New

name : Auger Flight Spiral Blade

Contact Now

High Quality Thickened Accurate Size Screw Auger Flight Spiral Blades Screw Blade For Screw Conveyor

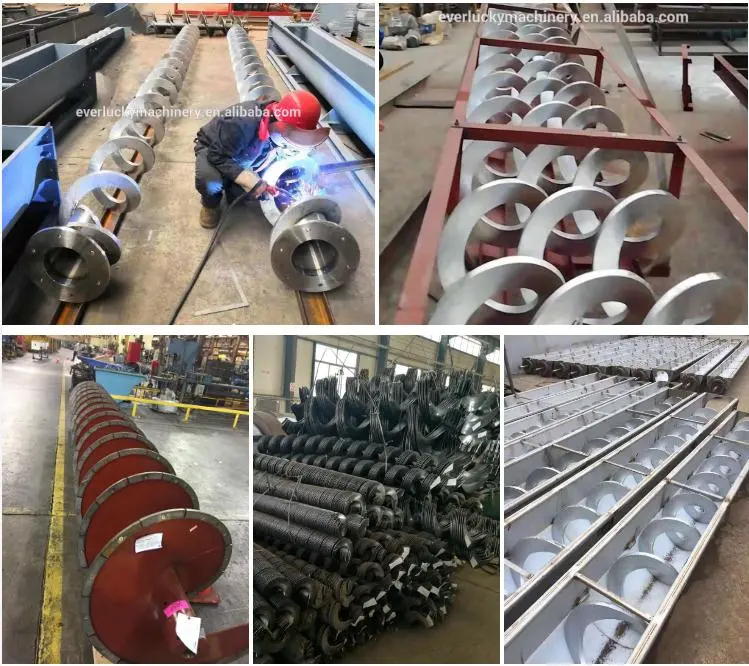

The basic design of the screw conveyor has changed little over thousands of years but we invested much time and energy to improve the screw flight quality. We can supply exact size and high quality screw flight as per customers' design.

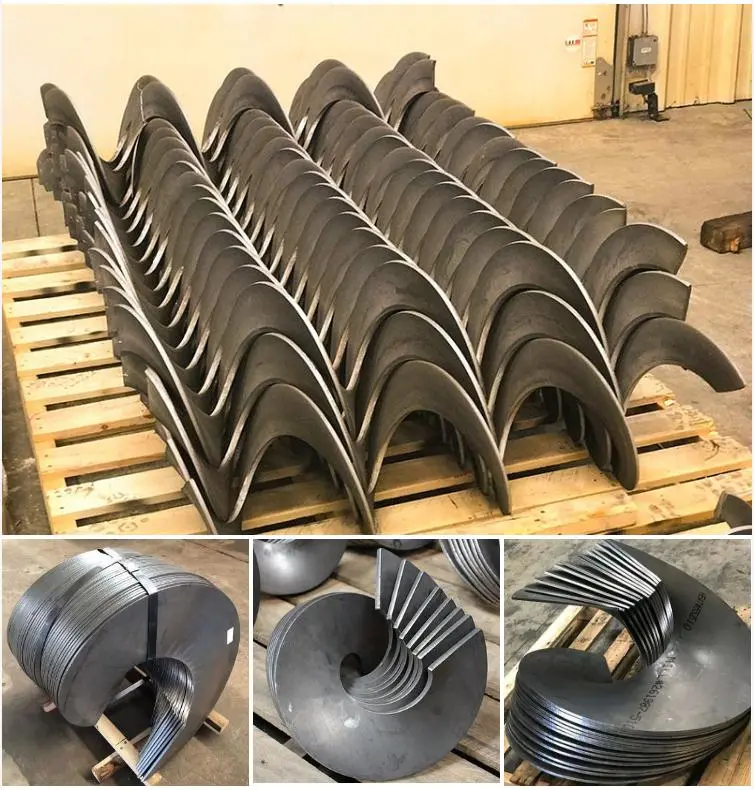

Classify:
1. with shaft
2. Non shaft
3. Continuous
4. Piece type
5. Carbon steel
6. Stainless Steel (304, 316, 316L, 310S)
7. 16Mn (wear resistant material)
Main Use: Usually, it is used on the screw conveyor and drill equipment.

Model	WLS150	WLS200	WLS250	WLS300	WLS400	WLS500
Number
Spiral diameter(mm)	150	184	237	284	365	470
Outer diameter(mm)	180	219	273	351	402	500
Incline degree(a)	0 °-30 °	0 °-30 °	0 °-30 °	0 °-30 °	0 °-30 °	0 °-30 °
Max Length(m)	12	13	16	18	22	25
Capacity(t/h)	2.4	7	9	13	18	28
