Automatically Single SGS Industrial Bucket Elevators For Packing Line

Product Categories
Chang Hong Mining Machinery Co., Ltd.
Contact Now

Automatically Single SGS Industrial Bucket Elevators For Packing Line

  • 1
  • 2

Brand Name : Changhong

Model Number : Z Type

Certification : ISO,SGS,SONCAP

Place of Origin : Hebei,China

MOQ : 1 set

Price : USD980~2500/set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100sets/month

Delivery Time : 30 work days

Packaging Details : We use wooden cases or container packing to ensure safe transportation

Material : Stainless Steel,Carbon steel,PP bucket and ss304 frame or carbon steel frame

Power(w) : As the model you choose

After-sales service provided : Video technical support,Online support

Dimension(l*w*h) : Customized Size

Warranty : 12 Months

Color : As Your Requred

Min. lifting height : Customized

Contact Now

Automatically Rice/frozen Foods/snack/solid Food Chain Z Type Bucket Elevator For Packing Line


Product Introduction:

Z bucket elevators can be widely applied in horizontal and vertical convey for solid food, such as rice, chip potato, candy feedstuff, and so on. It composes the automatic quantitative packing system combined with the weight and packing machine, which is applying widely.

Advantage:
Automatically Single SGS Industrial Bucket Elevators For Packing Line

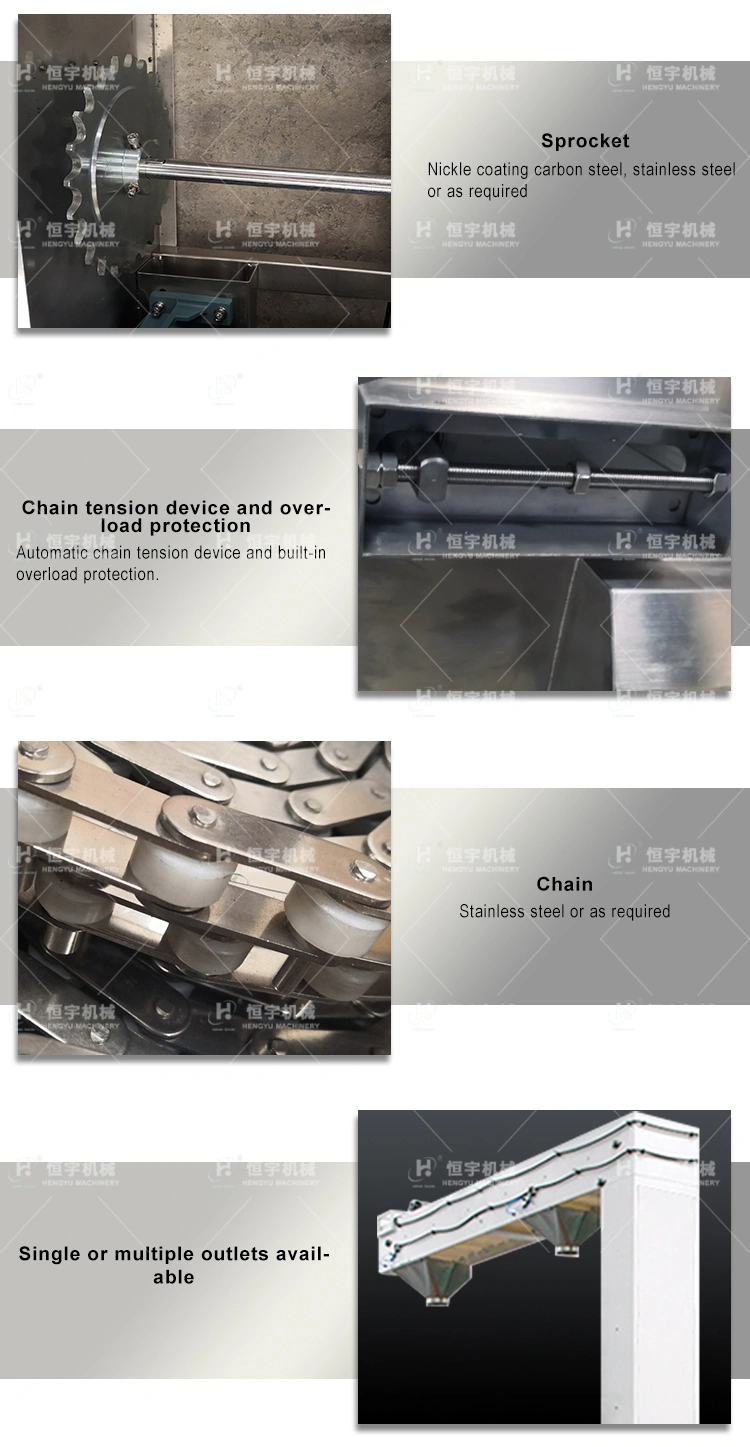

1. All elevators are equipped with an automatic chain tension device and built-in overload protection.
2. Material of structure: Stainless steel 304 or carbon steel or others as required.

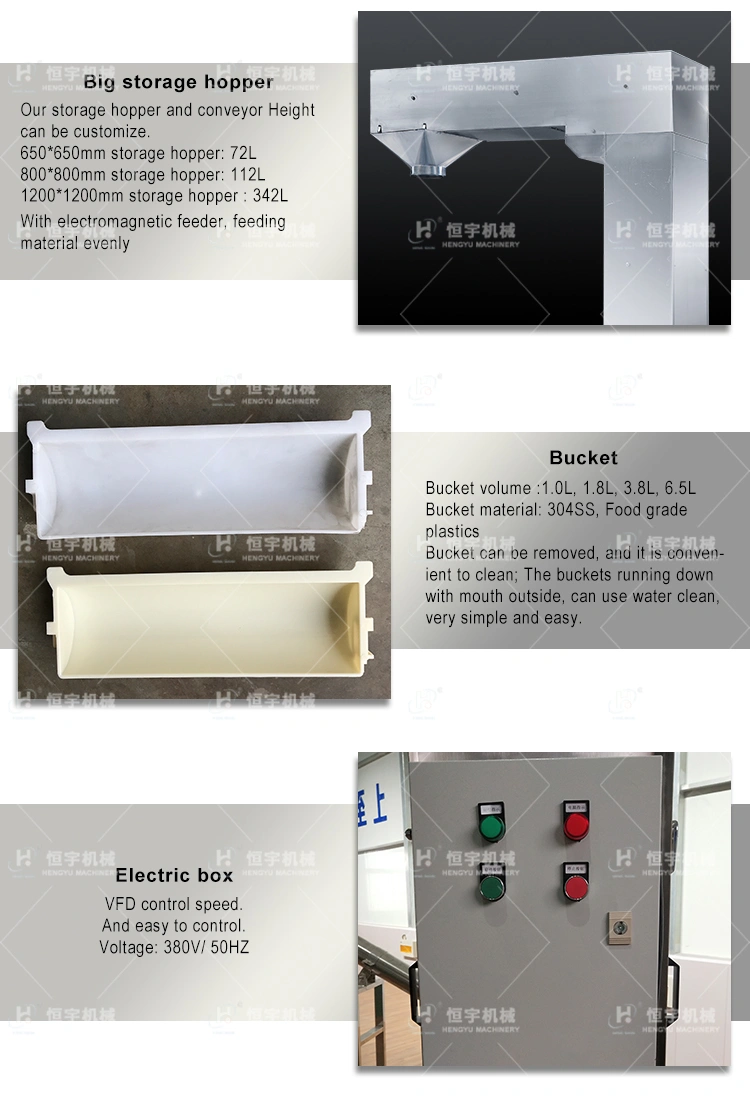

3. The buckets are made of PP, ABS, stainless steel 304 or others as required.
4. Strong sprocket(Nickle coating carbon steel, Stainless steel, Nylon, or others as required), running stably, and less noise.

Technical Parameter:

Bucket volume 1.0L 1.8L 3.8L 6.5L

Output
2-3.5m3/h
4-6m3/h		 6.5-8m3/h 8.5-12m3/h
Bucket material PP, ABS, SS304, or other
Body material mild steel, stainless steel 304 or other
No. of the discharge port Single or Muti discharge port

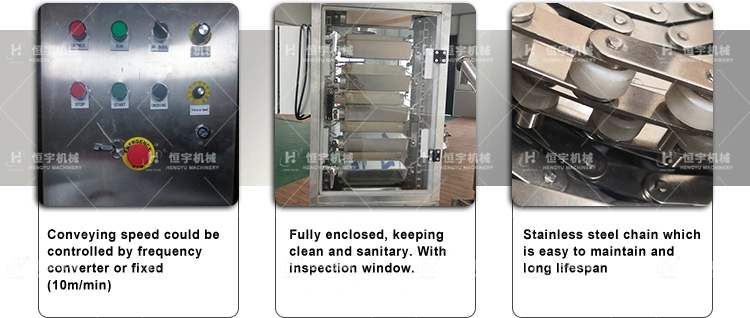

Speed Adjustable or fixed
Voltage(v) 220V/50Hz, single phase
380V/50Hz, three phases
Or as required


Application:

Automatically Single SGS Industrial Bucket Elevators For Packing Line
Product Details:
Automatically Single SGS Industrial Bucket Elevators For Packing LineAutomatically Single SGS Industrial Bucket Elevators For Packing Line
